About This

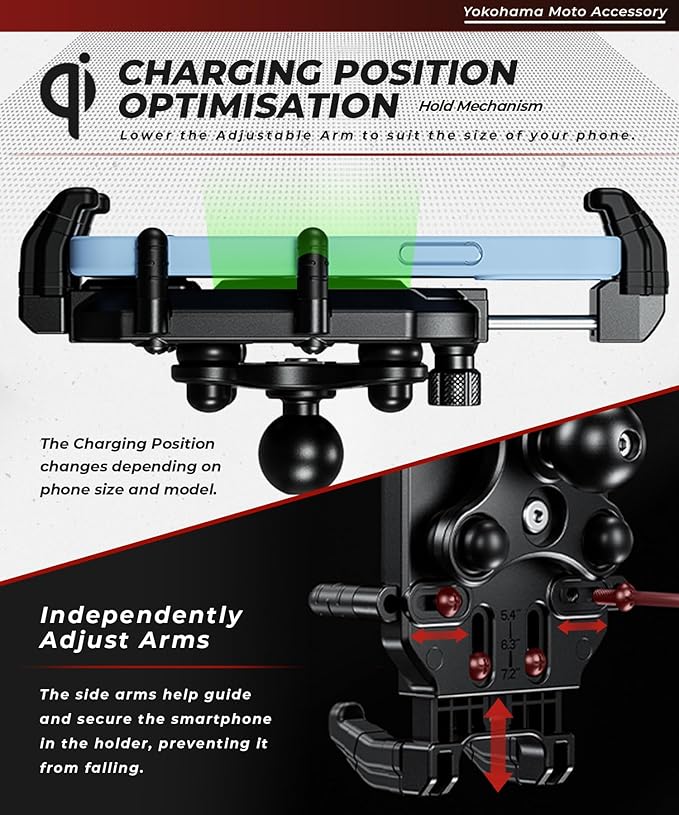

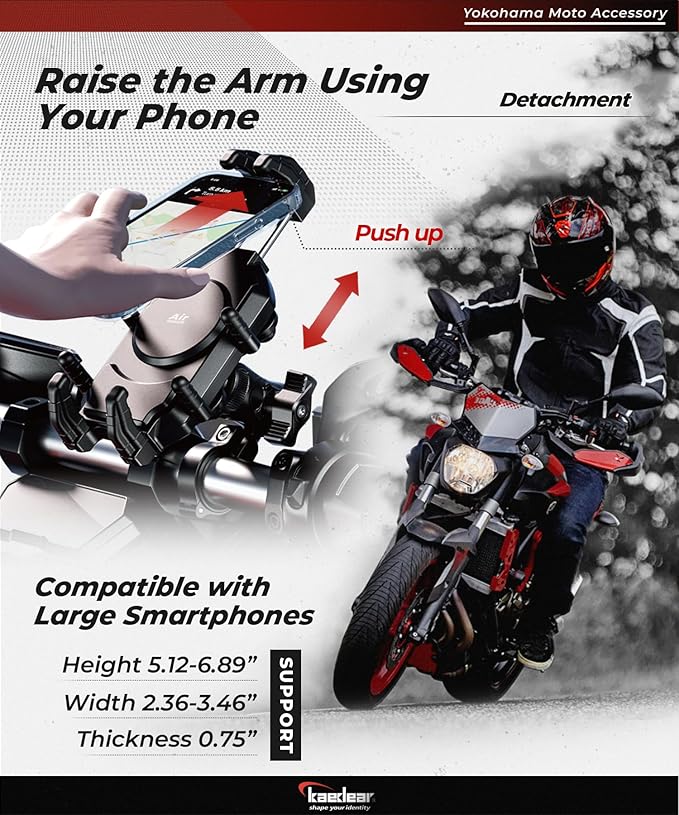

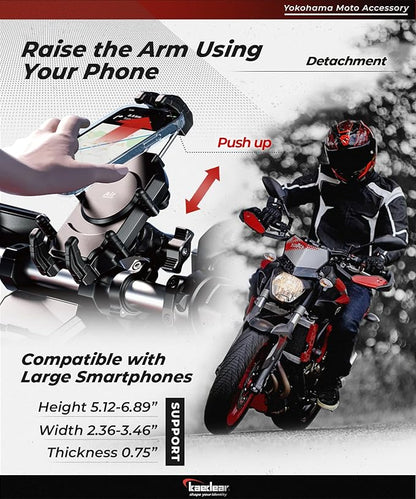

• [Features] The upper and bottom devil horns are large and thick to safely hold smartphones. You can push the upper arm up with your smartphone to remove your smartphone effortlessly. The guide arms on both sides work as a guide to keep your device in the center and helps prevent slipping. You can adjust the height of the lower arm and adjust the wireless charging position according to your smartphone model. The dial on the back allows the arm to be secured to prevent the arm from opening due to impact while driving. Waterproof: It is IP66 waterproof, so it can withstand sudden rain.

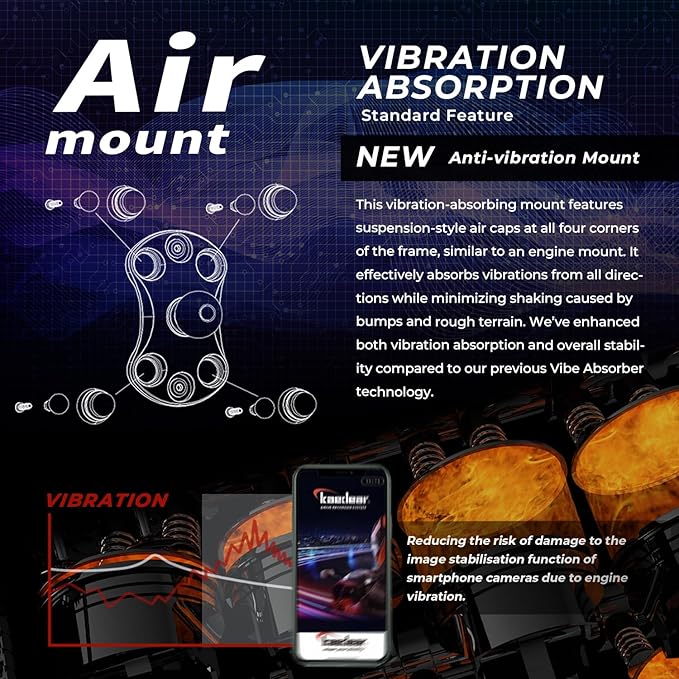

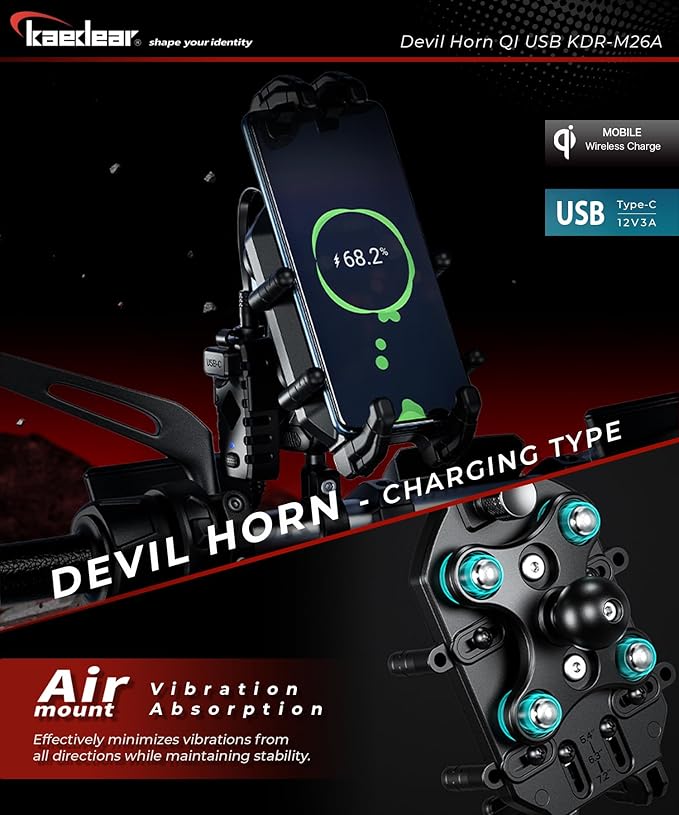

• [Air Mount] The holder features an "Air Mount" equipped with air caps that work like air suspensions to effectively absorb high frequencies caused by engine vibrations, which reduce the risk of damage to your smartphone camera stabilization part. The KDR-M26A mount is the ideal choice for those seeking a holder that accommodates a thickness of 19mm (0.75”), features Air Mount technology, supports QI compatibility, and is suitable for long-term use.
• [Compatibility] ■Compatibility with iPhone 17 / 17 Pro / 17 Pro Max / Air / 16 / 16 Pro / 16 Pro Max / 16 Plus / 15 / 15 Pro / 15 Pro Max / 15 Plus / 14 / 14 Plus / 14 Pro / 14 Pro / 14 Pro max / 13 Pro Max / iPhone 13 Pro / 13 / 13 Mini / 12 Pro / 12 / 12 Pro Max / 12 Mini / SE 3 / SE 2 / 11 / 11 Pro / 11Pro Max / X / XS / XR / XS Max / 8 / 8 Plus / Samsung Galaxy / Google Pixel and other QI compatible models

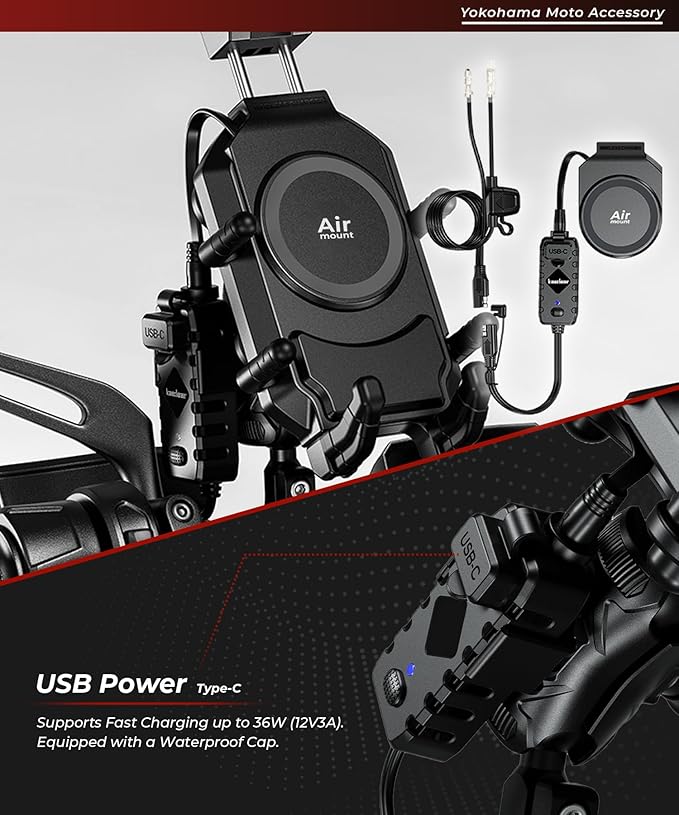

• [QI Charging & USB Charging] Can be used with QI wireless charging or a USB power source at 12V. ■Output: QI 15W/10W/7.5W/5W, USB (Type C) 36W (5V3A/9V2A/12V3A) *Charges with the power required by the model. ■ 12V input: Connect to your motorcycle 12V power source for wireless charging and USB power supply. Cannot be used with battery-less motorcycles, 6V and 24V batteries. ■ USB input: Cannot be used with USB input. ■Power switch: ON/OFF only. When you receive 12V from 0V state, it will automatically turn up. ■ 12V Wiring: 5.9 ft (1.75 m) discreet black double cable (with white writings for the positive cable. With a fuse holder, bullet connectors, and convertible to spade terminals.)
• [Caution] If you are unfamiliar with voltage drops (including professionals), connect the negative wire directly to the battery’s negative terminal. Follow these guidelines to ensure proper operation: ■ Body grounding: Body grounding can only be used if the resistance between the battery’s negative terminal and the grounding point is confirmed to be 0Ω. Avoid grounding to unstable resistance points, such as handlebars. ■ Crimp terminals: Be cautious of voltage drops caused by reduced contact surface area on crimp terminals.
• [Important Notes on Grounding] The resistance of a ground point may appear normal under no-load conditions but can cause voltage drops when under load. To accurately check the power supply, measure the load voltage under the following conditions: 1- The wiring is connected, and the circuit is complete. 2- The smartphone holder’s power switch is turned ON. 3- A probe is applied to measure at the SAE connector with a slight gap. Note: Voltage measurements under no-load conditions cannot determine the reliability of the power supply.
• [Product Specifications] Check the actual size of your device, including the case and accessories. Compatibility refers to holding and wireless functions but not camera clearance. ■ Height: 5.1–6.9 in (130–175 mm) ■ Width: 2.4–3.5 in (60–88 mm) ■ Thickness: 0.7 in (19 mm) or less ■ Metal or magnetic components in the case may trigger safety protection and stop operation. Thick cases may reduce wireless charging efficiency. ■ For added safety, use a strap or carabiner attached to your handlebar. ■ Material: Aluminum alloy (mount), PA66 + GF ■ Weight: 0.98 lbs (445 g)

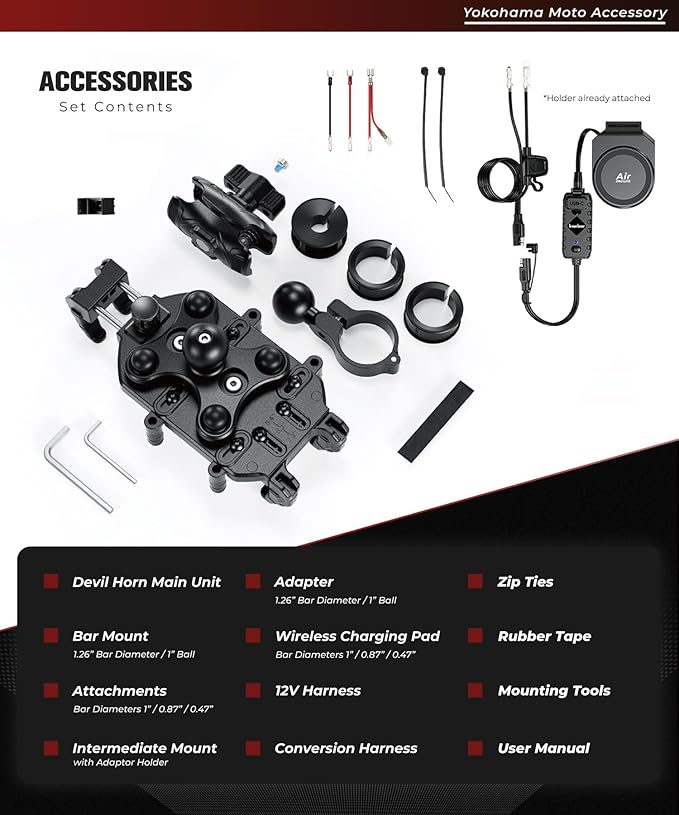

• [Set contents] Main Unit (1 inch ball type) + Bar Mount (1 inch ball type, for 32mm diameter handlebars, width 15mm) + Diameter Conversion Attachment (0.47”/0.87”/1”) + 2mm thick Rubber Adjustment Tape + 2.36 inches (60mm) Intermediate Mount (Anti-theft Type / 12V Adapter Holder included) + 12V Adapter with USB Power Supply + SAE Harness (with fuse holder/bullet connectors) + Conversion Terminals (Flat Y-shaped/ Spade terminals) + and Cable Ties. *The intermediate mount becomes non-removable once the hex bolts are installed, allowing angle adjustments only within the adjustable range. ■Brand: Kaedear
• [Manufacturer’s Warranty] Warranty Period: 1 year (Valid from the purchase date). Kaedear offers continuous support post-purchase. For product or installation questions, our certified staff provides expert assistance. If defects arise due to malfunctions, we will assess and provide exchanges under our warranty policy. For business use, the warranty is 6 months. Refer to our website for details. Even after installation or use, we offer assistance. As a Japanese manufacturer, we prioritize customer service. Feel free to contact us for any inquiries.

Overview

• Brand : Kaedear
• Color : Black
• Compatible Devices : Smartphones
• Compatible Phone Models : iPhone 15 / 15Pro / 15Pro Max / 15Plus / 14 / 14Plus / 14pro / 14pro / 14pro max / 13 Pro Max / iPhone 13 Pro / 13 / 13mini / 12 Pro / 12 / 12 Pro Max / 12 mini / SE 3 / SE 2 / 11 / 111111 Pro / 11Pro Max / X / XS / XR / XS Max / 8 / 8 Plus / 7 / 6 iPhone 15 / 15Pro / 15Pro Max / 15Plus / 14 / 14Plus / 14pro / 14pro / 14pro max / 13 Pro Max / iPhone 13 Pro / 13 / 13mini / 12 Pro / 12 / 12 Pro Max / 12 mini / SE 3 / SE 2 / 11 / 1111… See more
• Mounting Type : Handlebar
